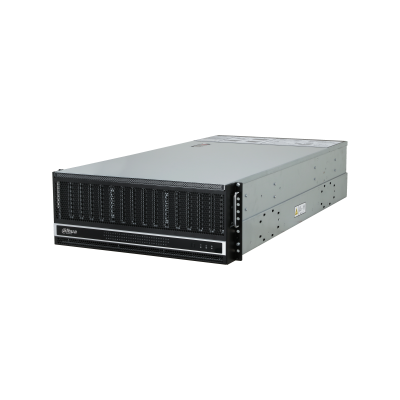

DHI-EVS7285S
1.0.01.23.13804 - DAHUA
Warranty : 5.0 ans
· High performance 64-bit multi-core processor and large capacity server memory (16 GB included, and expandable up to 128 GB) to ensure stable processing of massive data · With its 4U standard rack and attached rack slide rail, the device neatly fits into cabinets that are one-meter deep (this measurement does not include the door) · Supports 85 disk bays, SATA and SAS ports, 18 TB disks, and screw free disk assembly · Highly reliable, it has a 2 + 1 redundant power supply with energy conversion efficiency up to 80% · Comes with 5 built-in gigabit Ethernet ports, 2 USB 3.0 ports, 1 eSATA port and 2 PCI-E X8 ports · Designed with a Dahua-developed file system, it has strong read/write performance for single RAID which has been improved by up to 75% · Supports access, storage and forwarding for max.1024-channel (2048 Mbps) and 32-channel (64 Mbps) online playback · Highly stable storage system that is supported by JBOD, RAID 0/1/5/6/10/50/60, JRAID (erasure code), global hot standby and private hot standby · Offers disk inspection before and during use, and prevents disk faults from occurring in advance by triggering early warning alarms · To facilitate heat dissipation and reduce power consumption, the device supports bad track mapping and putting non-working disks into sleep mode, extending the HDD service life · Disk roaming is offered for storage servers that are the same and different to prevent data loss on disks · Supports network protocols, including RTP, RTCP, RTSP, UDP, HTTP, NTP, SNMP, iSCSI, SMB, NFS and FTP · Features direct storage mode for video streaming to reduce cost on streaming media · Provides access to devices such as cameras and ITCs to directly store images, reducing the cost of image forwarding on the server · Supports N + M cluster. When the main device fails, the corresponding sub device will automatically take over the recording job. When the main device recovers, the sub device will transmit the images and videos recorded during the failure to the main device · Locks real-time streaming and history videos to prevent key and important videos from getting overwritten · ONVIF, auto registration and other protocols are supported, allowing access to front-end video streaming storage. It is also highly compatible with cameras from different manufacturers · Offers automatic network replenishment, and transfers videos from the SD card to the device when the camera is not connected to the network · Features dual-system backup. The Normal system can be recovered through the Rescue system when the Normal system fails
- VMS, serveur, licences et kit : Baies de stockage
Description
· High performance 64-bit multi-core processor and large capacity server memory (16 GB included, and expandable up to 128 GB) to ensure stable processing of massive data
· With its 4U standard rack and attached rack slide rail, the device neatly fits into cabinets that are one-meter deep (this measurement does not include the door)
· Supports 85 disk bays, SATA and SAS ports, 18 TB disks, and screw free disk assembly
· Highly reliable, it has a 2 + 1 redundant power supply with energy conversion efficiency up to 80%
· Comes with 5 built-in gigabit Ethernet ports, 2 USB 3.0 ports, 1 eSATA port and 2 PCI-E X8 ports
· Designed with a Dahua-developed file system, it has strong read/write performance for single RAID which has been improved by up to 75%
· Supports access, storage and forwarding for max.1024-channel (2048 Mbps) and 32-channel (64 Mbps) online playback
· Highly stable storage system that is supported by JBOD, RAID 0/1/5/6/10/50/60, JRAID (erasure code), global hot standby and private hot standby
· Offers disk inspection before and during use, and prevents disk faults from occurring in advance by triggering early warning alarms
· To facilitate heat dissipation and reduce power consumption, the device supports bad track mapping and putting non-working disks into sleep mode, extending the HDD service life
· Disk roaming is offered for storage servers that are the same and different to prevent data loss on disks
· Supports network protocols, including RTP, RTCP, RTSP, UDP, HTTP, NTP, SNMP, iSCSI, SMB, NFS and FTP
· Features direct storage mode for video streaming to reduce cost on streaming media
· Provides access to devices such as cameras and ITCs to directly store images, reducing the cost of image forwarding on the server
· Supports N + M cluster. When the main device fails, the corresponding sub device will automatically take over the recording job. When the main device recovers, the sub device will transmit the images and videos recorded during the failure to the main device
· Locks real-time streaming and history videos to prevent key and important videos from getting overwritten
· ONVIF, auto registration and other protocols are supported, allowing access to front-end video streaming storage. It is also highly compatible with cameras from different manufacturers
· Offers automatic network replenishment, and transfers videos from the SD card to the device when the camera is not connected to the network
· Features dual-system backup. The Normal system can be recovered through the Rescue system when the Normal system fails
