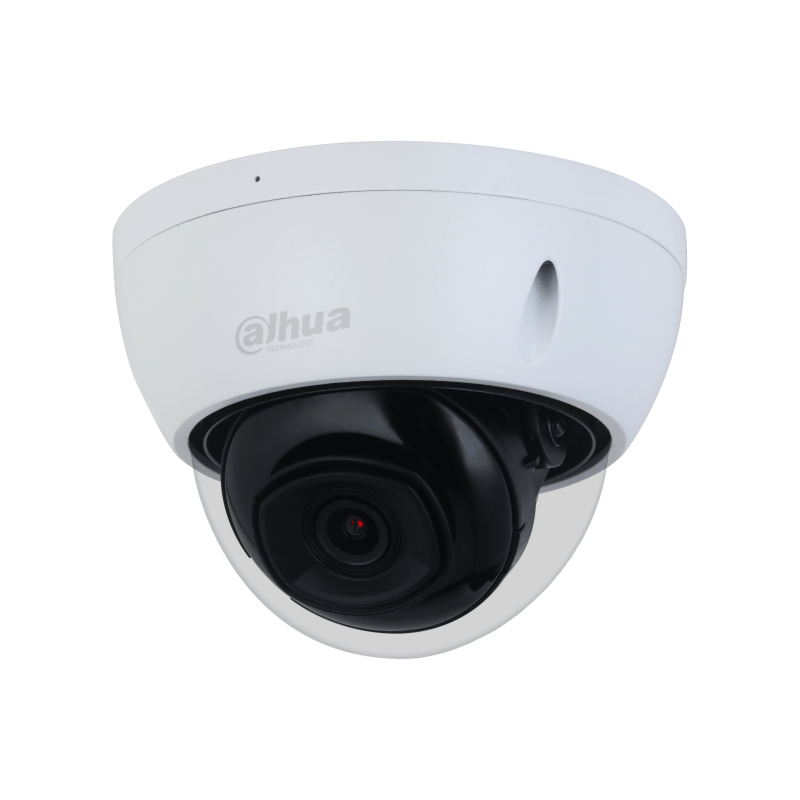

IPC-HDBW2441EP-S-0280B

1.0.01.04.39366 - DAHUA

Warranty : 3.0 ans

4-MP 1/3" CMOS image sensor, low luminance, and high definition image. Outputs max. 4 MP (2688 × 1520)@20 fps, and supports 2566 × 1440@25/30 fps. H.265 codec, high compression rate, ultra-low bit rate. Built-in IR LED, and the max. illumination distance is 30 m. ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments. Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human). Supports max. 256 G Micro SD card; built in MIC. 12 VDC/PoE power supply, easy for installation. IP67 protection. SMD.

  • Technologie : IP
  • Intelligence Artificielle : WizSense, Protection périmétrique
  • Résolution : 4 Mpx
  • Focale : 2.8 mm
  • IR Distance : 30 m
Suggested alternatives: Compare

Description

4-MP 1/3" CMOS image sensor, low luminance, and high definition image.
Outputs max. 4 MP (2688 × 1520)@20 fps, and supports 2566 × 1440@25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, and the max. illumination distance is 30 m.
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
Supports max. 256 G Micro SD card; built in MIC.
12 VDC/PoE power supply, easy for installation.
IP67 protection.
SMD.

Attribute

Caméra ou support
Caméra
Technologie
IP
Modèle de caméra
Dôme
Résolution
4 Mpx
Type de focale
Fixe
Focale
2.8 mm
Intelligence Artificielle
WizSense, Protection périmétrique
IR Distance
30 m
Compensation contre jour
WDR
Audio
Micro intégré
Alimentation de la caméra
12 V, POE
Couleur de la caméra
Blanc

Download

Fiche technique
IPC-HDBW2441E-S_datasheet_20220727 (1).pdf
