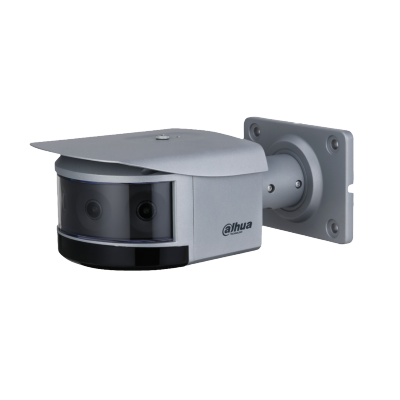

DH-IPC-PFW83242P-A180-DC12AC24V-S2

1.0.01.04.39229 - DAHUA

Warranty : 5.0 ans

4 × 8 MP, 1/1.8" CMOS image sensor, low illuminance, high image definition Outputs max. 32 MP (8192 × 3840) @25/30 fps Built-in IR LED, and the max. illumination distance is 30 m. ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments. Supports image correction Support video clip, the image can be clipped as needed Alarm: 2 in, 2 out; audio: 1 in, 1 out; 485; BNC; supports max. 256G SD card 12 VDC/24 VAC/PoE power supply; easy for installation IP67 nad IK10 protection

  • Technologie : IP
  • Fonctionnalités de la caméra : Panoramique 180 °
  • Intelligence Artificielle : WizMind, Protection périmétrique, Densité de la foule
  • Résolution : 8 Mpxls / 4K
  • Focale : 2.8 mm

Description

4 × 8 MP, 1/1.8" CMOS image sensor, low illuminance, high image definition
Outputs max. 32 MP (8192 × 3840) @25/30 fps
Built-in IR LED, and the max. illumination distance is 30 m.
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
Supports image correction
Support video clip, the image can be clipped as needed
Alarm: 2 in, 2 out; audio: 1 in, 1 out; 485; BNC; supports max. 256G SD card
12 VDC/24 VAC/PoE power supply; easy for installation
IP67 nad IK10 protection

Attribute

Caméra ou support
Caméra
Technologie
IP
Modèle de caméra
Tube motorisé PTZ
Fonctionnalités de la caméra
Panoramique 180 °
Résolution
8 Mpxls / 4K
Type de focale
Fixe
Focale
2.8 mm
Intelligence Artificielle
WizMind, Protection périmétrique, Densité de la foule
IR Distance
30 m
Compensation contre jour
BLC
Audio
Entrée audio, Sortie audio
Alimentation de la caméra
12 V
Couleur de la caméra
Gris

Download

Fiche technique
IPC-PFW83242-A180.pdf
