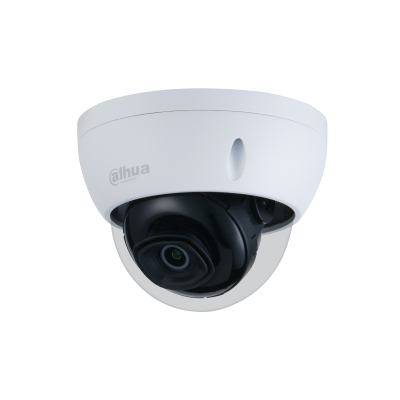

IPC-HDBW3441EP-S-0280B-S2

1.0.01.04.38291 - DAHUA

Warranty : 3.0 ans

End of life product

Replaced by : IPC-HDBW3441EP-AS-0280B-S2

See the product

4-MP 1/3" CMOS image sensor, low luminance, and high definition image. Outputs max. 4 MP (2688 × 1520)@25/30 fps. H.265 codec, high compression rate, ultra-low bit rate. Built-in IR LED, and the max. illumination distance is 30 m. ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments. Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human). Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection. Supports max. 256 G Micro SD card; built in MIC. 12 VDC/PoE power supply, easy for installation. IP67 protection. SMD 4.0.

  • Technologie : IP
  • Fonctionnalités de la caméra : Starlight
  • Intelligence Artificielle : WizSense, Protection périmétrique
  • Résolution : 4 Mpx
  • Focale : 2.8 mm
Suggested alternatives: Compare

Description

4-MP 1/3" CMOS image sensor, low luminance, and high definition image.
Outputs max. 4 MP (2688 × 1520)@25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, and the max. illumination distance is 30 m.
ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Supports max. 256 G Micro SD card; built in MIC.
12 VDC/PoE power supply, easy for installation.
IP67 protection.
SMD 4.0.

Attribute

Caméra ou support
Caméra
Technologie
IP
Modèle de caméra
Dôme
Fonctionnalités de la caméra
Starlight
Résolution
4 Mpx
Type de focale
Fixe
Focale
2.8 mm
Intelligence Artificielle
WizSense, Protection périmétrique
IR Distance
50 m
Compensation contre jour
WDR
Alimentation de la caméra
12 V, POE
Couleur de la caméra
Blanc

Download

Fiche technique
IPC-HDBW3441E-S_datasheet_20210329.pdf
