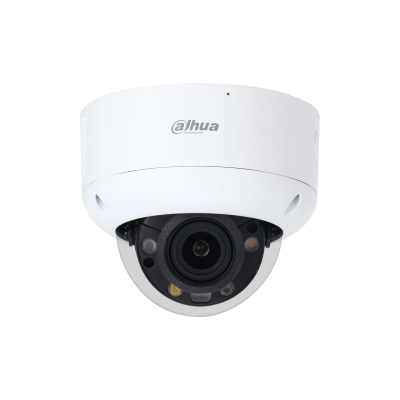

IPC-HDBW3449R1P-ZAS-PV-27135

1.0.01.04.37833 - DAHUA

Warranty : 3.0 ans

End of life product

Replaced by : IPC-HDBW3449R1P-ZAS-PV-27135-S5

See the product

4-MP 1/2.8" CMOS image sensor, low luminance, and high definition image. Outputs max. 4 MP (2688 × 1520)@25/30 fps. H.265 codec, high compression rate, ultra-low bit rate. Built-in warm light and IR LED; the max. IR illumination distance is 50 m and max warm light distance is 40 m. ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments. Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human). Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection. Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; buit-in dual MICs; 1-ch speaker. 12 VDC/PoE power supply, easy for installation. IP67,IK10 protection. Sound and light alarm (red and blue lights). SMD 3.0. One-click arming/disarming through alarm input.

  • Technologie : IP
  • Fonctionnalités de la caméra : TIOC 2.0
  • Intelligence Artificielle : WizSense
  • Résolution : 4 Mpx
  • Varifocale : 2.7 - 13.5 mm

Description

4-MP 1/2.8" CMOS image sensor, low luminance, and high definition image.
Outputs max. 4 MP (2688 × 1520)@25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in warm light and IR LED; the max. IR illumination distance is 50 m and max warm light distance is 40 m.
ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; buit-in dual MICs; 1-ch speaker.
12 VDC/PoE power supply, easy for installation.
IP67,IK10 protection.
Sound and light alarm (red and blue lights).
SMD 3.0.
One-click arming/disarming through alarm input.

Attribute

Caméra ou support
Caméra
Technologie
IP
Modèle de caméra
Dôme
Fonctionnalités de la caméra
TIOC 2.0
Résolution
4 Mpx
Type de focale
Varifocale Motorisée
Varifocale
2.7 - 13.5 mm
Intelligence Artificielle
WizSense
IR Distance
40 m
Compensation contre jour
WDR
Audio
Entrée audio, Sortie audio, Micro intégré
Alimentation de la caméra
12 V, POE
Couleur de la caméra
Blanc

Download

Fiche technique
IPC-HDBW3449R1-ZAS-PV_S0_datasheet_20221207.pdf
